Exchange 2007 prerequisites and custom server role installation

Brien Posey
03.14.2008
Rating: --- (out of 5)

Digg This!

StumbleUpon

Del.icio.us

When migrating to Exchange Server 2007 from previous versions of Exchange, there's more to the installation process than a simple upgrade. Server roles play a larger part in Exchange Server 2007, and the Exchange 2007 installation process varies considerably based on which server roles you plan to deploy. This tip begins with an outline of Exchange 2007's installation prerequisites and a brief introduction to its server roles, including the Hub Transport, Mailbox, Client Access, Edge Transport and Unified Messaging Server roles. It then explains step-by-step how to execute a custom Exchange 2007 server role installation and perform critical updates.

[IMAGE]
[IMAGE]Exchange 2007 prerequisites and custom server role installation
[IMAGE]
[IMAGE] Part 1: Understanding Exchange 2007 server roles
[IMAGE] Part 2: Performing a custom Exchange 2007 server role installation

Part 1: Understanding Exchange 2007 server roles

There are a few things to keep in mind when preparing to migrate to Exchange Server 2007. First, the server will run only on a 64-bit version of Windows Server 2003. There also are several prerequisites that must be met before you can install Exchange Server 2007. The majority of these prerequisites deal with various patches and add-on components that must be downloaded and set up before installing Exchange 2007. Required components also vary, depending on the server roles that you're deploying. Table 1 lists these prerequisites and links to download them online.

Digg This!

StumbleUpon

Del.icio.us

RELATED CONTENT

	Microsoft Exchange Server 2007
	Using Mobile Device Manager 2008 server roles in Exchange 2007
	Relocating Outlook email messages on a hosted Exchange 2007 server
	New high availability features in Exchange Server 2010
	An introduction to the DSAccess service in Exchange Server 2007
	Control Outlook 2007 in cached mode settings with group policies
	Exchange Performance Monitor tracks domain controller communication
	Meeting Workspaces in Microsoft Office SharePoint Server 2007
	Exchange Server 2007 SP2 reinstates built-in backup capabilities
	Three Performance Monitors counters to use in Exchange Server 2007
	Understanding Exchange Server 2007 SP1 mobile security settings
	Microsoft Exchange Server 2007 Research

Exchange Server Deployment and Migration Advice

Exchange Server 2007: Email archiving tips and hosted services trends

Exchange Insider e-zine

ExMerge gotchas to watch for when migrating Exchange 2003 mailboxes

Mailbox viewing problems after migrating to Exchange 2007

Migrating mailboxes across domains with the Exchange Management Console

Recovering deleted items after an Exchange 2003 migration

Linking two Exchange 2003 servers in different forests

Installing Exchange Server 2003 and a domain controller on the same hardware

Outlook Web Access issues after an Exchange 2003 migration

When to use Move Mailbox Wizard or ExMerge to move Exchange mailboxes

Exchange Migration Tips

Virtualizing Exchange Server 2007 with Microsoft's Hyper-V

Slipstreaming Microsoft Office 2007 deployments

Finding the best tool to migrate Exchange public folders to SharePoint

Migrating antispam settings from Exchange 2003 to Exchange 2007

Migrating resource mailboxes from Exchange 2003 to Exchange 2007

Methods for moving mailboxes and public folders to Exchange 2007

Managing Exchange 2003 and Exchange 2007 in mixed mode

Testing Exchange Server 2007 on a virtual machine

What's missing from Exchange Server 2007

Moving mobile user mailboxes from Exchange 2003 to Exchange 2007

RELATED GLOSSARY TERMS

Terms from Whatis.com − the technology online dictionary

rehoming (SearchExchange.com)

RELATED RESOURCES

2020software.com, trial software downloads for accounting software, ERP software, CRM software and business software systems

Search Bitpipe.com for the latest white papers and business webcasts

Whatis.com, the online computer dictionary

content="FrontPage.Editor.Document"> New Page 1 [TABLE]

Table 1. Exchange Server 2007 prerequisites and components.

You may have to download many different updates. One timesaver that I use is to download all prerequisite files to a USB flash drive. I rename each file to reflect the order in which the component must be installed. When I need to install Exchange Server 2007 onto another server, I insert my flash drive and run the updates in order.

Before installing Exchange Server 2007, you must have a basic understanding of its roles. For detailed information on Exchange Server 2007's server roles, I recommend reading Admin 101: Server roles in Exchange Server 2007. Following are brief explanations of all of the server roles in Exchange Server 2007.

Return to Top

Part 2: Performing a custom Exchange 2007 server role installation

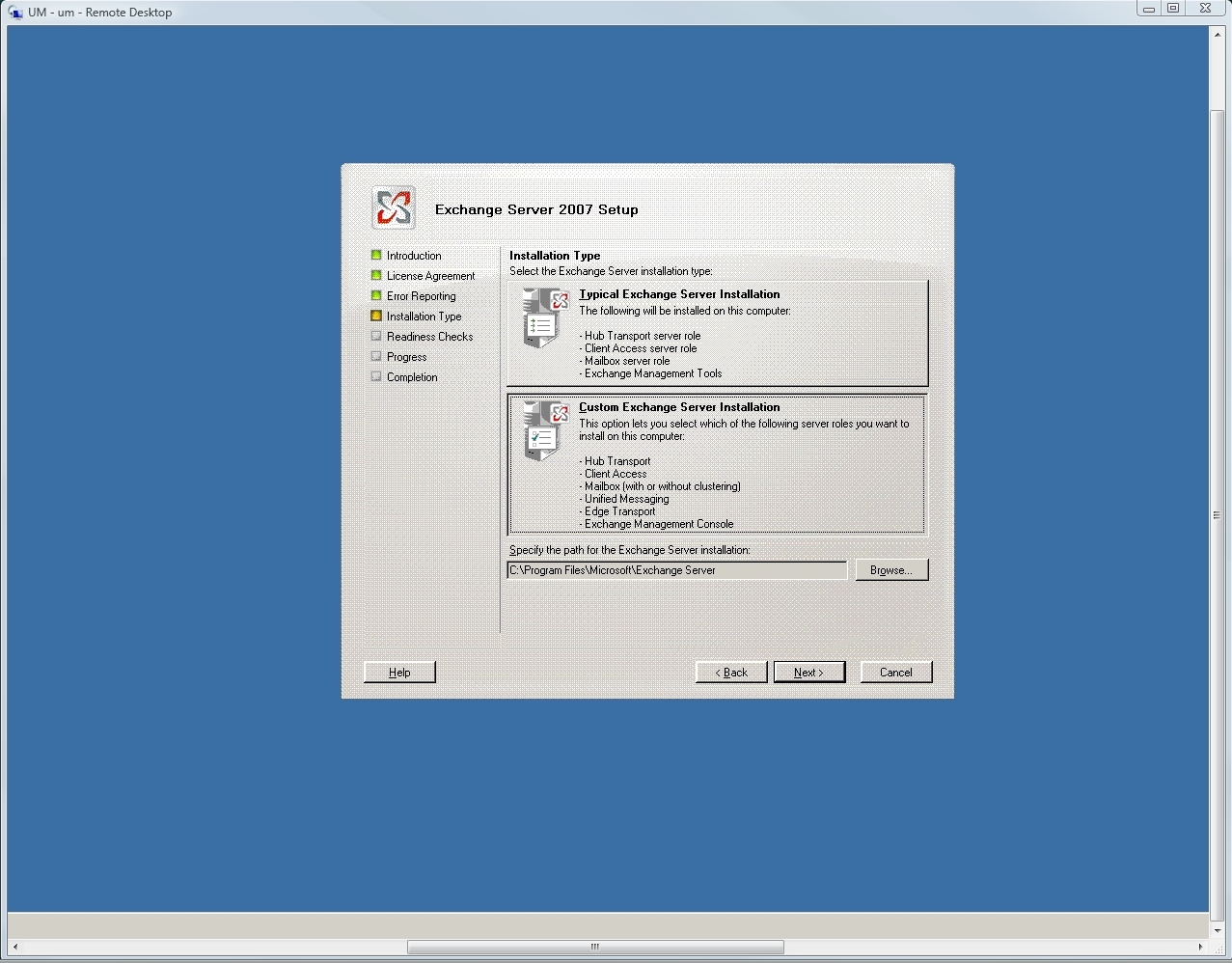

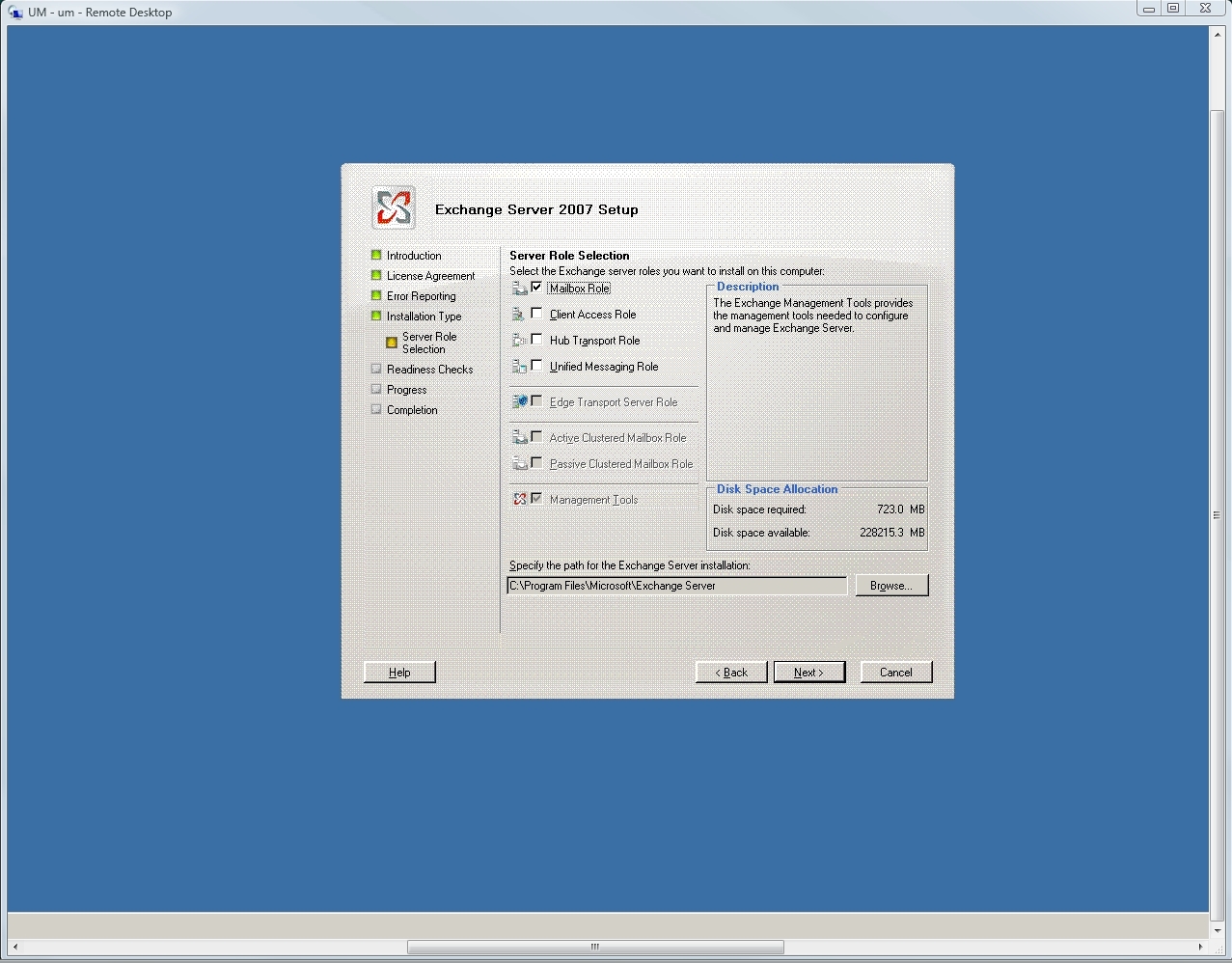

When you install Exchange Server 2007, you have the choice to perform either a typical or custom installation. A typical installation doesn't allow you to select the server roles that you want to install – the Mailbox, Client Access and Hub Transport Server roles will be installed automatically. I recommend performing a custom Exchange 2007 installation. To do so:

[TABLE]
