When the Intelligent Message Filter (IMF) is running on Exchange Server, all messages processed by it are labeled with a value called the "Spam Confidence Level" (SCL).
The SCL is a ranking that IMF gives an e-mail on a range of 0 to 9. Most of the time, messages ranked 8 or above are definitely spam. But it is possible to have a legitimate message stamped with a high spam score, because it has certain spam-like attributes.
I've noticed, for instance, that legitimate (if non-whitelisted) messages with many hyperlinks in them tend to be scored as spam regardless of where the links lead.
The SCL isn't normally shown on messages received in Microsoft Outlook, but it can be useful to have it displayed. This isn't something you can do with Microsoft Outlook's out-of-the-box options though.
For now, the only way to do it (for now) is to create a custom Microsoft Outlook form that exposes the SCL Property.
The folks at Microsoft's You Had Me At EHLO blog have an example of how to do this, which I'll recap here:
Note that the SCL column will not populate if you're using Microsoft Outlook in conjunction with just the local Junk E-mail filter. It only shows values with e-mails received from Exchange Server and processed with the Intelligent Message Filter.
About the author: Serdar Yegulalp is editor of the Windows Power Users Newsletter.
MEMBER FEEDBACK TO THIS TIP
Am I correct in assuming that what this does is read the [SCL] mail header and display it in the messages grid?
I have been attempting to modify this script to display other headers (that are not already available in Microsoft Outlook), but I only get a blank column in my messages grid in Microsoft Outlook. I have Googled this topic with no success. It seems like there is a big back hole in the area of "exposing headers in Microsoft Outlook," and in "outlook.cfg" files.
To continue reading for free, register below or login
To read more you must become a member of SearchExchange.com
Any help would be greatly appreciated.
—Daniel O.
******************************************
I believe what's actually happening here is the form is exposing a property on the message that has been provided by the Exchange server in the X-Exch50 blob -- a set of metadata properties that move with the message but are separate from it. The x-header added to the POP3 version of the message headers is not what's actually read; it's just added to the message as a way to include that property with it if it ever gets moved out of Exchange.
From what I can tell, exposing arbitrary headers as columns doesn't seem possible yet, but if I do find a way to do it I'll post it as a tip.
—Serdar Yegulalp, tip author
******************************************
This is a great tip that worked wonderful in Microsoft Outlook 2003, but now I have Microsoft Outlook 2007 and it doesn't work. Do you know if there is a fix?
—Phil B.
******************************************
I got this working in Microsoft Outlook 2007 as well, so I'm not sure what might be wrong. I was able to follow the same series of steps to expose the SCL.
If you're having trouble finding the SCL.CFG file, remember that you need to go to the directory where you installed it; the Forms manager doesn't open to that directory automatically.

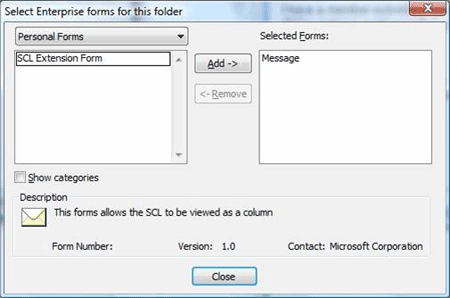

Also, when you're in the Field Chooser and you go to the "Select Enterprise forms for this folder" view, you need to remove everything from the "Selected Forms" column FIRST before adding the "SCL Extension Form." Otherwise the SCL Extension Form won't appear.
[IMAGE]
—Serdar Yegulalp, tip author
Do you have comments on this tip? Let us know.
