Mailbox policy configuration for Unified Messaging

Unified Messaging mailbox policy

This is part #9 from "Microsoft Exchange Server 2007 Unified Messaging for administrators," excerpted from Chapter 9 of the book Microsoft Exchange Server 2007: The Complete Reference, published by McGraw-Hill Osborne Media.

Configuring each and every mailbox with common settings, such as PIN lengths and dialing restrictions for the various locations, would be tedious and could lead to inconsistent or even invalid configurations. The UM mailbox policy object allows you to apply settings to groups of UM-enabled mailboxes in a consistent way.

A default mailbox policy is created when you create a new UM dial plan. You can choose to leave the default settings, customize the default policy, or create a new policy to link to the UM Dial Plan. You will need to configure the UM mailboxes to use the custom UM mailbox policy.

Creating a new UM mailbox policy

Use the following steps to create a new UM mailbox policy:

1. Open the EMC with an administrator account that has the Exchange Organization Administrator role.
2. Expand "Organization Configuration" and click "Unified Messaging."
3. Select the "UM Mailbox Policies" tab in the "Work" pane.
4. Select "New UM Mailbox Policy" in the "Actions" pane.

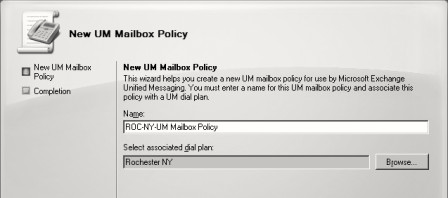

5. Type the name of the UM mailbox policy in the "Name" field, as shown below.
6. Click "Browse," then select a UM dial plan to associate with the mailbox policy, and click "OK."
7. Click "New."
8. Click "Finish."

As an alternative to the EMC, you can also use the New-UMMailboxPolicy cmdlet in the EMS, like in this example:

[PS]C:>New-UMMailboxPolicy -Name "ROC-NY-UM Mailbox Policy" -UMDialPlan "Rochester NY"
