It's time to verify that our Exchange 2007 clustered mailbox server is working as expected.
Let's first open the Cluster Administrator and check whether the respective Exchange
Resources have been created. If you take a look at Figure 8.88, it looks good; we have both
nodes listed in the left pane and all Exchange resources have been created and are currently
owned by EDFS09.

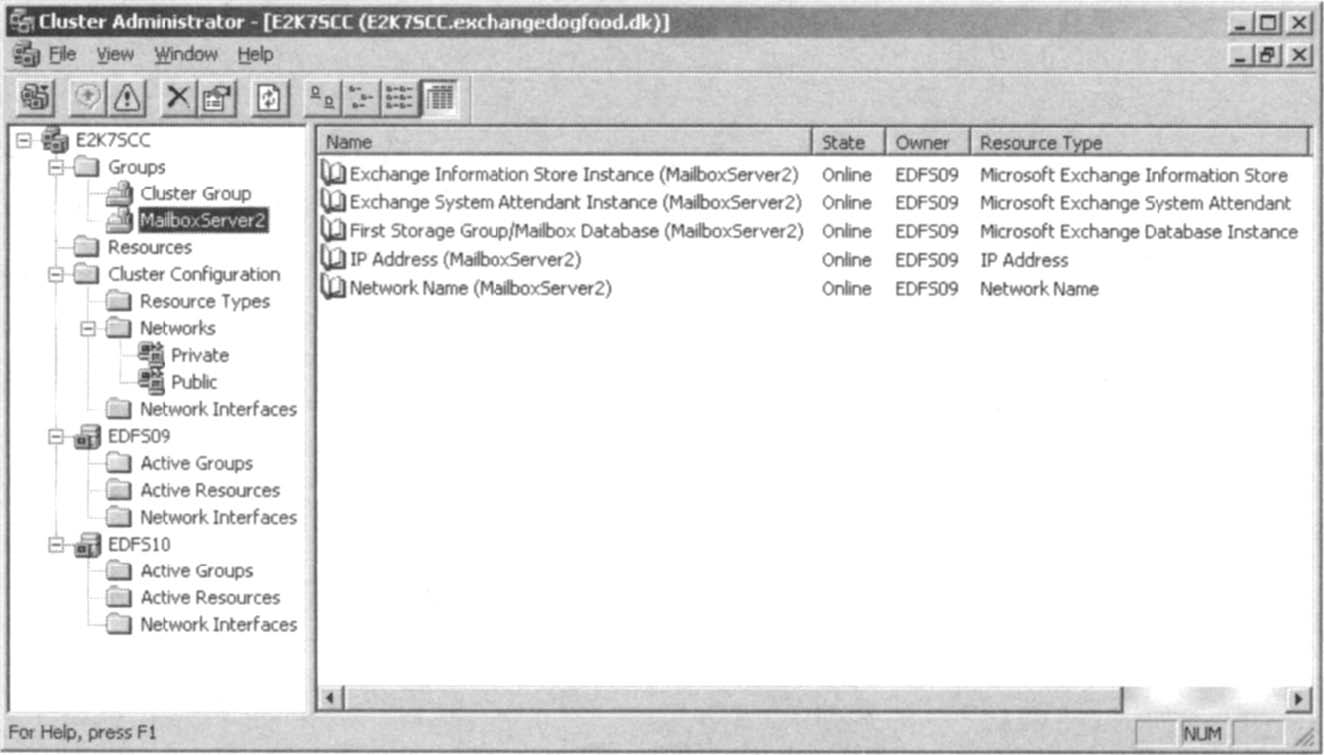

Figure 8.88 Listing All Exchange Cluster Resources in the Cluster
Administrator. (Click on image for enlarged view.)
If you look closer at Figure 8.88, though, you can see that two cluster groups exist: one
containing the cluster IP, name, and the shared disks, and one created by Exchange 2007
setup containing the Exchange Information Store, System Attendant, Storage Groups, and
Database instances as well as the Exchange virtual server IP address and network name. We
recommend that you move all shared resources from the cluster group to the
MailboxServer2 group (or whatever you called it); otherwise, you will have problems
mounting the database when moving the clustered mailbox server from one node to the
other (which we'll do in just a moment).
In addition, if you have assigned a shared disk specifically for the transaction log files, remember to change the path for these files. You can do so by selecting the respective storage group under Server Configuration -> Mailbox node in the EMC, then click the Move Storage Group link in the Action pane. In the Move Storage Group Wizard, change the path for the log files to the L: drive or whatever drive you assigned them.
Now try to open the EMS by clicking Start -> All Programs -> Microsoft Exchange Server 2007 -> Exchange Management Shell on one of the nodes, then type Get-ClusteredMailboxServerStatus. As you can see in Figure 8.89, the status of the clustered mailbox server is Online, and EDFS09 is currently the active node. This just keeps getting better and better, doesn't it?

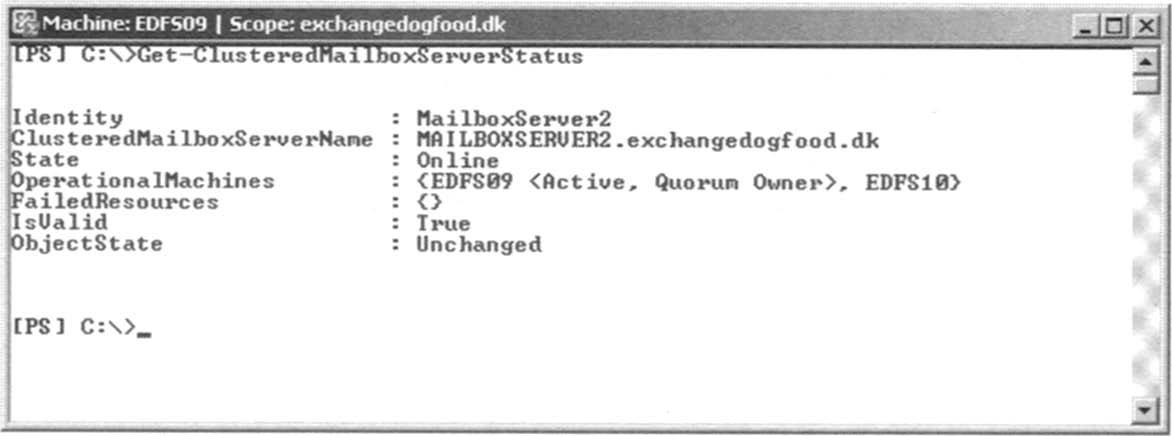

Figure 8.89 Verifying That the Cluster Is Online. (Click on image for enlarged view.)
Now that we have verified that the clustered mailbox server is online, let's try to move the Exchange resources from node one to node two using the Move-ClusteredMaitboxServer CMDlet. In the test environment we're using, we do so by issuing the command Move-ClusteredMailbox Server -Identity:Mailbox Server2 -TargetMachine:EDFS10 -MoveComment:"Testing the Move Clustered Mailbox functionality!"
You're then asked to confirm this action. Type Yes, then press Enter (see Figure 8.90). After a while the clustered mailbox resources will be moved to the second node.

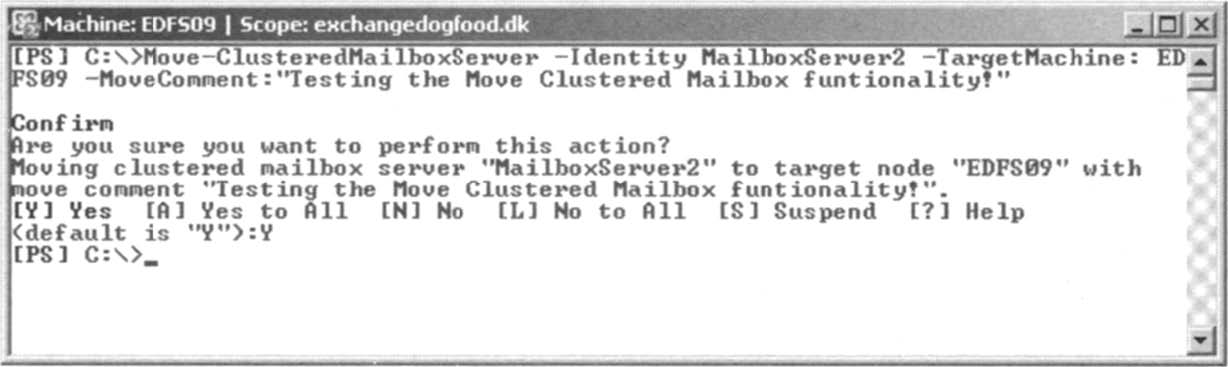

Figure 8.90 Moving the Clustered Mailbox Resources to the Second Node. (Click on image for enlarged view.)
| Warning: Although it's possible to move the cluster resource group between the nodes using the Cluster Administrator console, you should always do so (just as is the case with CCR-based clusters) using the Move-ClusteredMailboxServer CMDlet because the Move Group task in the Cluster Administrator console isn't Exchange 2007 aware. |
Let's also take a look at the clustered mailbox server in the EMC. To do so, click Start -> All Programs -> Microsoft Exchange Server 2007 -> Exchange Management Console, then drill down to Server Configuration -> Mailbox. Notice that the clustered mailbox server we named MailboxServer is listed in the Results pane and that it's recognized as a cluster server (see Figure 8.91).Also notice that the Mailbox Database for this server points to the S: drive, exactly as we specified during the installation of the Active Clustered Mailbox role.

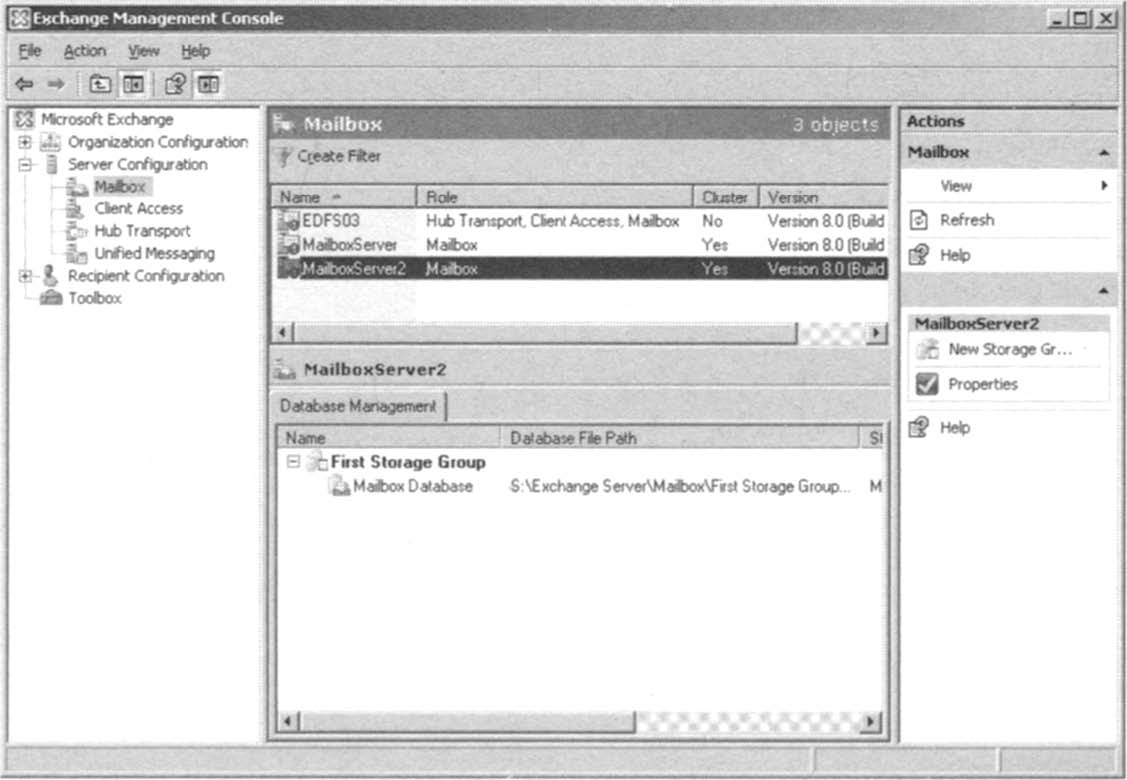

Figure 8.91 Viewing the Clustered Mailbox Server in the Exchange
Management Console. (Click on image for enlarged view.)
