Adding Local Continuous Replication performance objects and counters

When the Exchange 2007 Mailbox Server role is installed, setup adds two LCR-related performance objects to the Windows 2003 Performance Monitor. To open the Performance Monitor, either click Start --> Run and type Perfmon or click Start --> Administrative Tools and select Performance. This will bring up the Performance Monitor, shown in Figure 8.27.

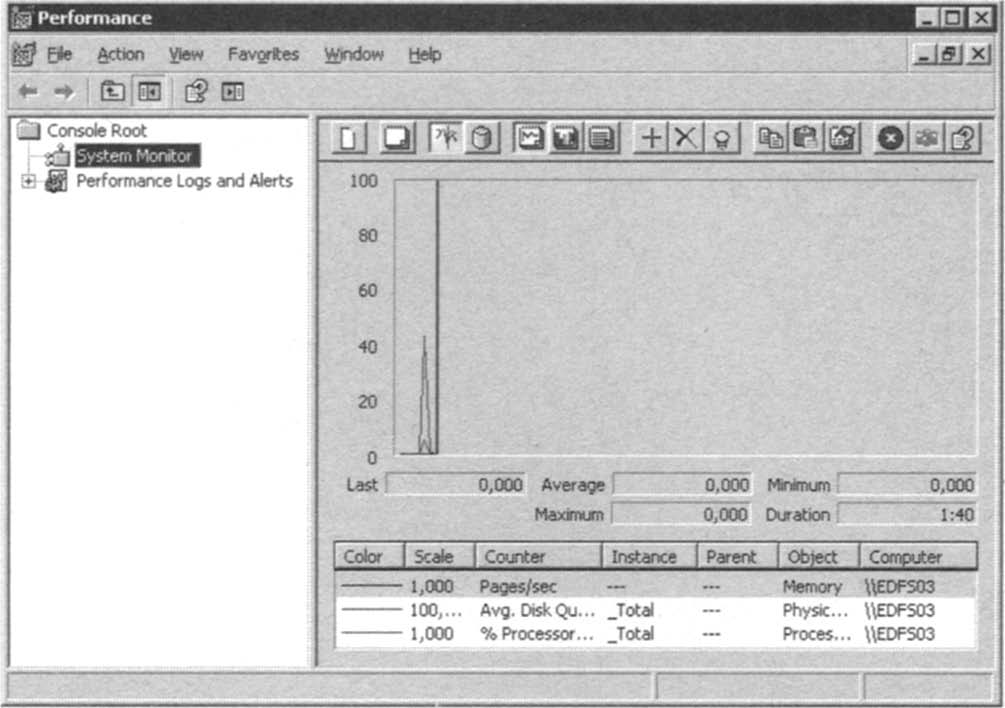

Figure 8.27 The Performance Monitor. (Click on image for enlarged view.)

You are reading part 9 of "Managing Local Continuous Replication in Exchange 2007," excerpted from Chapter 8 of the book "How to Cheat at Configuring Exchange Server 2007: Including Outlook Web, Mobile, and Voice Access," by Henrik Walther, copyright 2007, published by Syngress, a division of Elsevier.

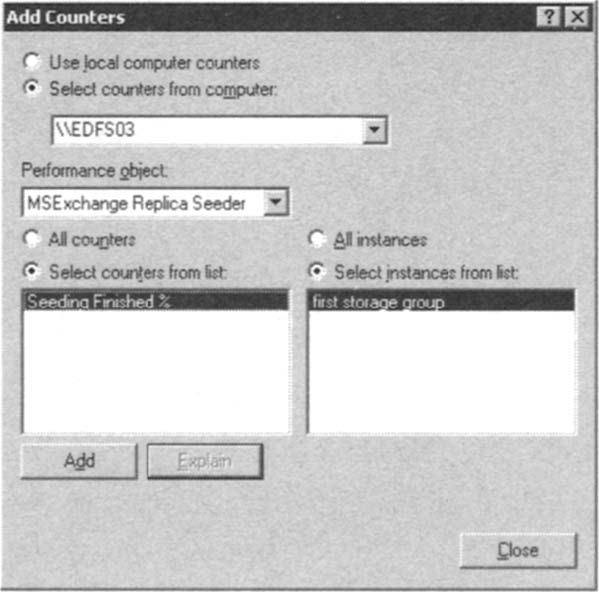

The first object is the MSExchange Replica Seeder performance object, which, as you can see in Figure 8.28, contains only one counter, called Seeding Finished %. This counter is used to show the progress of database seeding in percent. When you add this counter, you can choose which instance (in this case, the particular storage group) you want to view the database seeding for.

Figure 8.28 Continuous Replication performance objects. (Click on image for enlarged view.)

The MSExchange Replication performance object contains at least 14 different counters (see Table 8.2).

Table 8.2: Continuous Replication performance counters.

Performance Counter	Description
Copy Queue Exceeds Mount Threshold (CCR only)	Copy Queue Exceeds Mount Threshold (CCR Only) is 1 if the copy queue length is larger than the Mount Threshold specified by the Auto Database Mount Dial. This counter is used only with CCR. It will always be 0 with LCR.
CopyGenerationNumber	Copy Generation Number is the generation of the last log file that has been copied.
CopyNotificationGeneration Number	Copy Notification Generation Number is the generation of the last log file the copier knows about.
CopyQueueLength	Copy Queue Length is the number of log generations waiting to be both copied and inspected successfully.
Failed	Failed is 1 if the replica instance is set to failed, otherwise O.
InspectorGenerationNumber	Inspector Generation Number is the generation of the last log file that has been inspected.
ReplayBatchSize	Replay Batch Size is the number of log generations replayed together.
ReplayGenerationNumber	Replay Generation Number is the generation of the last log file that has been replayed successfully.
ReplayGenerationsComplete	Replay Generations Complete is the number of log generations already played in the current replay batch.
ReplayGenerationsPerMinute	Replay Generations Per Minute is the rate of replay in log generations per minute in the current replay batch.
ReplayGenerationsRemaining	Replay Generations Remaining is the number of log generations remaining to be played in the current replay batch.
ReplayNotificationGeneration Number	The generation of the last log file that replay knows about.
ReplayQueueLength	Replay Queue Length is the number of log generations waiting to be replayed.
Suspended	Suspended is 1 if the continuous replication is suspended. When the continuous replication is suspended, logs are not copied and replayed into the passive copy.

As you can see, all these counters can be used to determine how replication for an LCR-enabled storage group have progressed, but a high-availability feature such as LCR should really be monitored using a proactive and automated monitoring solution such as Microsoft Operation Manager (MOM) with the Exchange Server 2007 Management Pack installed.
